Argo JM19C Cosworth
Brand
Produced from
Portal
Vehicle category
Model line
Model generation
Predecessor
Sucessor
About this submodel

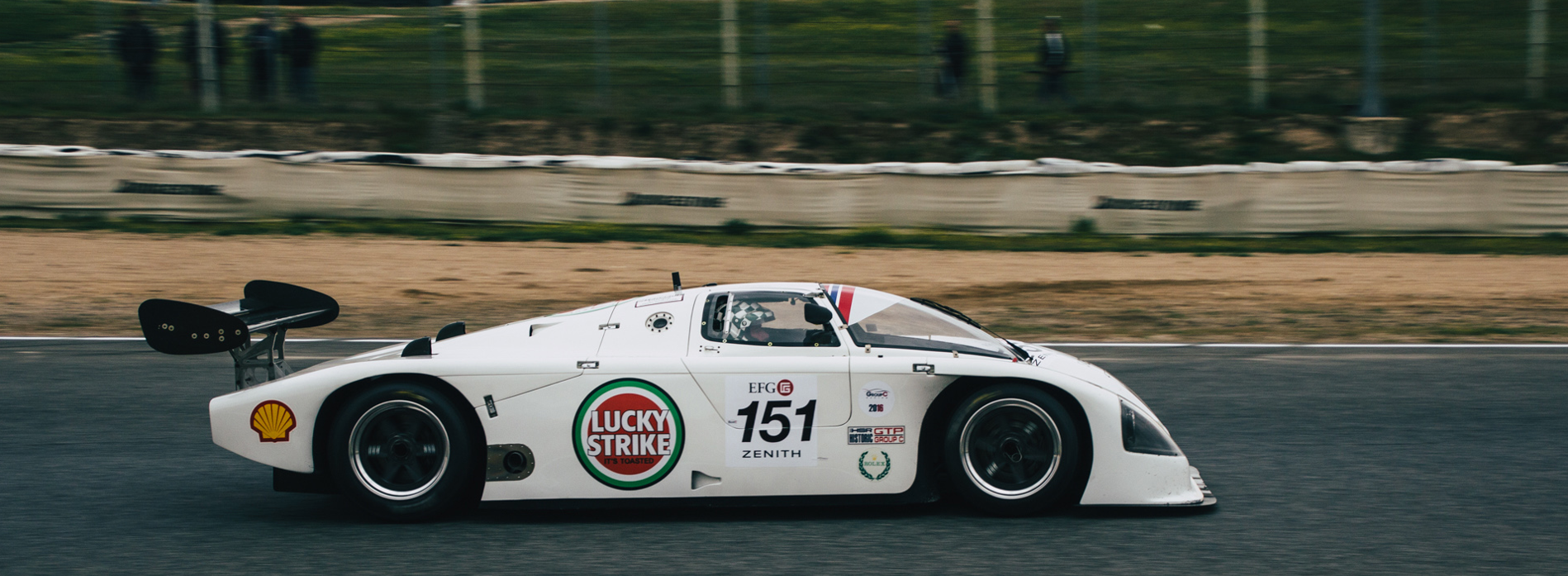

When privateers in the 1980s needed a reliable, powerful, and universally understood engine, one name stood above all others: Cosworth. The 1988 Argo JM19C Cosworth was the quintessential Group C2 challenger, a pragmatic and potent weapon built for the grueling endurance battles of the World Sports Car Championship.
This was the workhorse. While other Argos experimented with exotic, fragile, or highly-strung powerplants, the JM19C relied on the legendary Ford-Cosworth DFL. This was the 3.3-liter (and later 3.9-liter), naturally-aspirated V8 iteration of the engine that had dominated Formula 1 as the DFV. It was bulletproof, endlessly tunable, and relatively affordable. Mated to the lightweight, high-downforce JM19C chassis, it created the perfect package for privateer teams to hunt for C2 class victories at Le Mans, Silverstone, and Spa.
There was no turbo lag, no rotary quirks—just 500+ horsepower of instant, high-revving V8 throttle response. The sound was the definitive soundtrack of 1980s motorsport: a sharp, barking, mechanical roar that echoed across the track. The JM19C Cosworth was a fan favorite and a grid staple, a testament to a brilliant British-American partnership that defined an entire era of sports car racing.
Brand
Produced from
Portal
Vehicle category
Model line
Model generation
Predecessor
Sucessor
Brand
Produced from
Portal
Vehicle category
Model line
Model generation
Predecessor
Sucessor
About this submodel
When privateers in the 1980s needed a reliable, powerful, and universally understood engine, one name stood above all others: Cosworth. The 1988 Argo JM19C Cosworth was the quintessential Group C2 challenger, a pragmatic and potent weapon built for the grueling endurance battles of the World Sports Car Championship.
This was the workhorse. While other Argos experimented with exotic, fragile, or highly-strung powerplants, the JM19C relied on the legendary Ford-Cosworth DFL. This was the 3.3-liter (and later 3.9-liter), naturally-aspirated V8 iteration of the engine that had dominated Formula 1 as the DFV. It was bulletproof, endlessly tunable, and relatively affordable. Mated to the lightweight, high-downforce JM19C chassis, it created the perfect package for privateer teams to hunt for C2 class victories at Le Mans, Silverstone, and Spa.
There was no turbo lag, no rotary quirks—just 500+ horsepower of instant, high-revving V8 throttle response. The sound was the definitive soundtrack of 1980s motorsport: a sharp, barking, mechanical roar that echoed across the track. The JM19C Cosworth was a fan favorite and a grid staple, a testament to a brilliant British-American partnership that defined an entire era of sports car racing.
Tech Specs
Discover the technical specifications
Tech Specs
Discover the technical specifications
Engine
01
03
Internal combustion engine
Configuration
Ford Cosworth DFL, V8
Location
Mid, longitudinally mounted
Construction
Aluminium alloy block and head
Displacement (cc)
3,223 cc
Displacement (cu in)
196.6 cu in
Compression
-
Bore x Stroke
90.0 mm x 64.8 mm
Valvetrain
4 valves per cylinder, DOHC
Fuel feed
Fuel Injection
Lubrication
Dry sump
Aspiration
Naturally aspirated
Output
Power (hp)
465 hp
Power (kW)
347 kW
Max power at
8,500 RPM
Torque (Nm)
420 Nm
Torque (ft lbs)
310 ft lbs
Max torque at
7,250 RPM
Drivetrain
02
03
Chassis
Type
Monocoque unibody
Material
Aluminium honeycomb
Body
Material
Carbon fibre
Transmission
Gearbox
5-speed manual
Drive
Rear Wheel Drive
Suspension
Front
Double wishbones, coil springs over dampers, anti-roll bar
Rear
Double wishbones, coil springs over dampers, anti-roll bar
Steering
Type
Rack and pinion
Brakes
Front
Ventilated discs
Rear
Ventilated discs
Wheels
Front
-
Rear
-
Tires
Front
-
Rear
-
Dimensions and performance
03
03
Dimensions
Lenght (mm)
-
Lenght (in)
-
Width (mm)
-
Width (in)
-
Height (mm)
-
Height (in)
-
Wheelbase (mm)
-
Wheelbase (in)
-
Weight (kg)
750 kg
Weight (lbs)
1,654 lbs
Performance
Power to weight
0.62 hp/kg
Top speed (km/h)
-
Top speed (mph)
-
0-100 km/h (0-60 mph)
-
